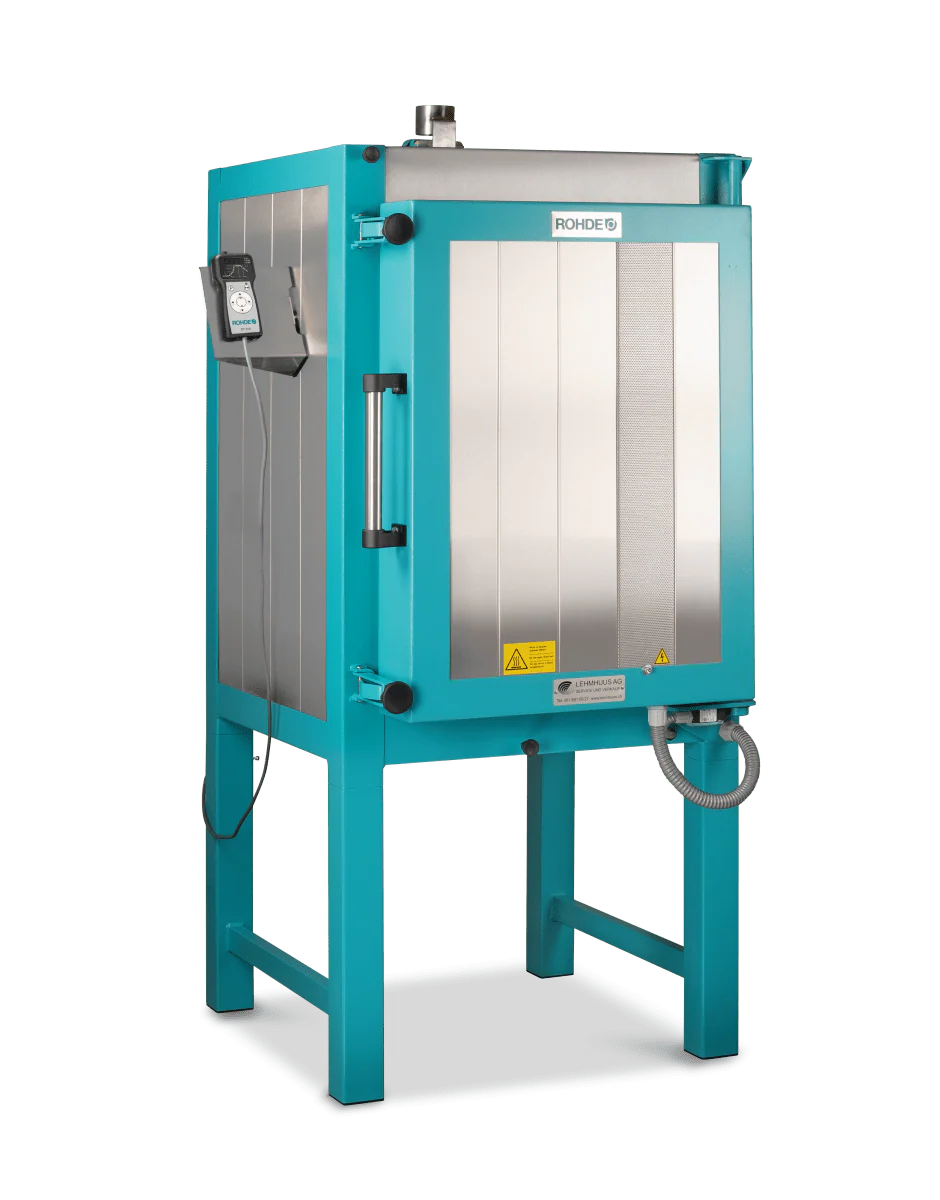

The KE 200 N Chamber kiln has a volume of 200 litres and is a kiln from the KE-N series suitable for temperatures to 1300°C.

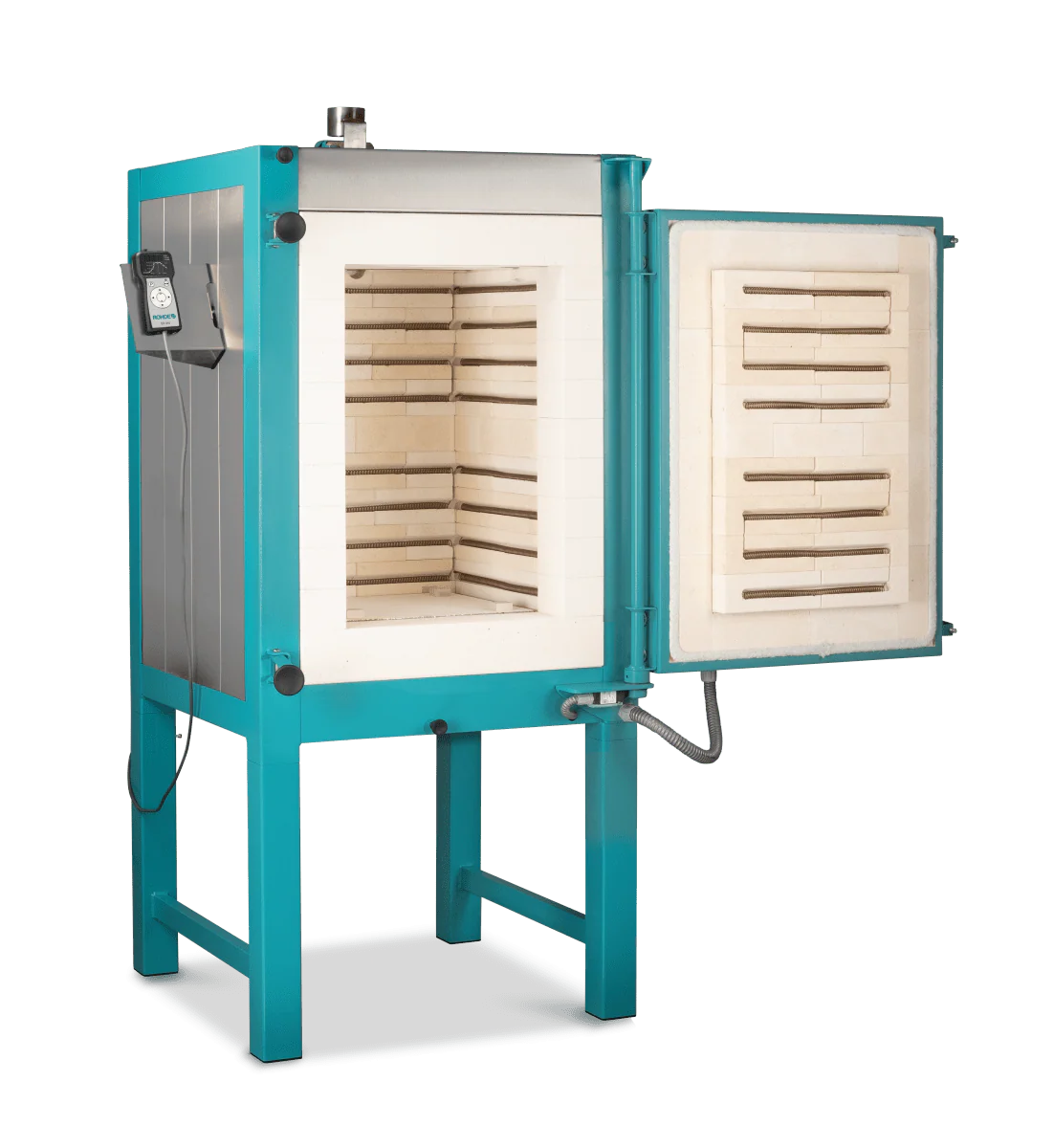

ROHDE Chamber kilns from the KE-N series comprise six models with kiln volumes between 100 and 480 litres. The heating elements are recessed into grooved firebricks on all five wall sides.
The KE-N series has been designed for use in workshops and schools. The heating elements in this series have been recessed into grooved bricks. This results in a variety of advantages. The heating elements are protected while the kiln is being charged, power output is constant and heat is evenly distributed throughout the firing chamber, providing the best possible results.
Special features of the KE-N series:
- 5-side heating resulting in even heat distribution

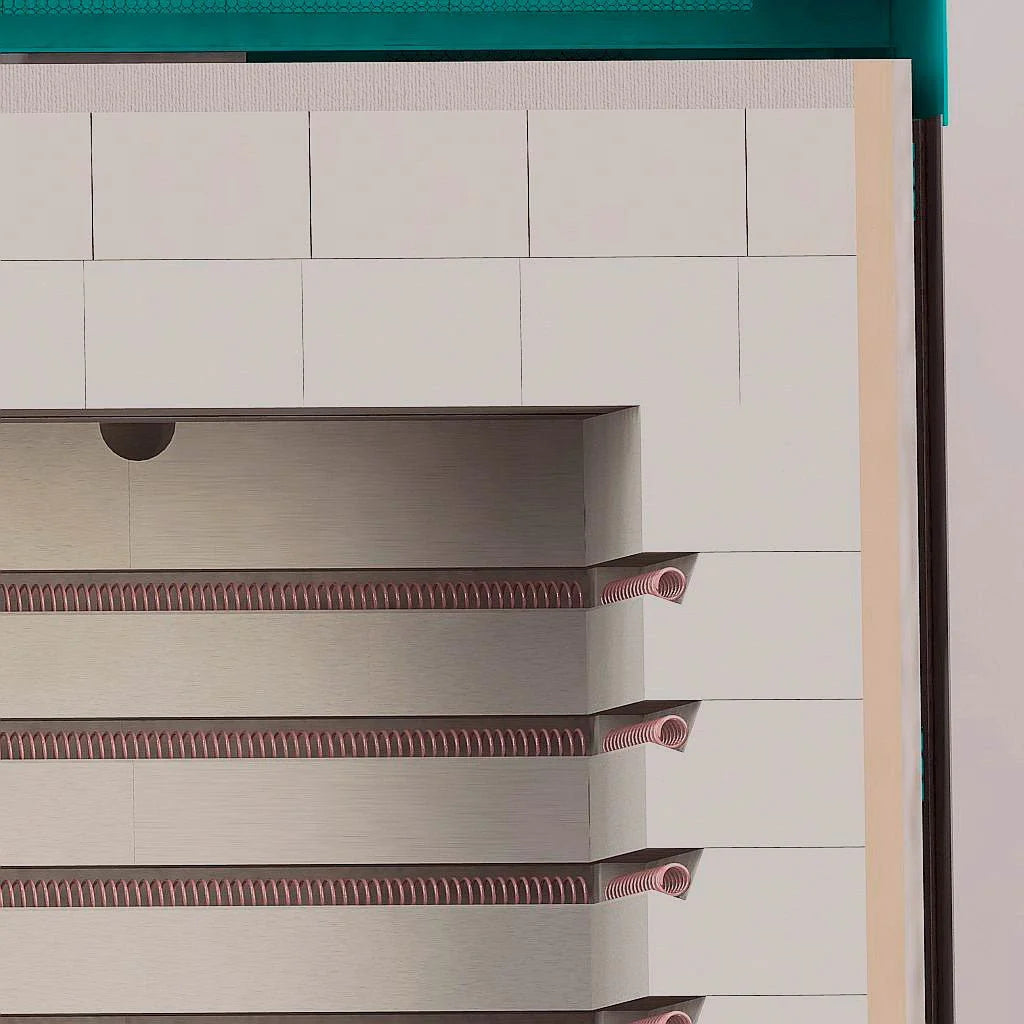

- Heating elements recessed into grooved bricks
- Stainless steel in-frame ventilation resulting in low external temperatures and corrosion protection
- 3-layer insulation structure
- “System ROHDE” R-SiC ceiling support prevents cracks and particles falling from the ceiling onto the ware
Electrical:
-
11kW/48A 230V single phase, 63 amp 3-pin CEE plug and cable.
-
11kW/16A (per phase) 400V three phase, 16 amp 5-pin CEE plug and cable.
Maximum Temperature: 1300°C.
Equipment: Type 'S' thermocouple.
Dimensions:
- Internal dimensions: 460mm x 640mm x 680mm (W x D x H)
- External dimensions: 800mm x 1210mm x 1780mm (W x D x H)
- Weight: 415kg
- Volume: 200 Litres
Optional furniture set:
- 4 x 600mm x 400mm x 18mm kiln shelves
- 9 x 25, 50, 75 and 100mm props
