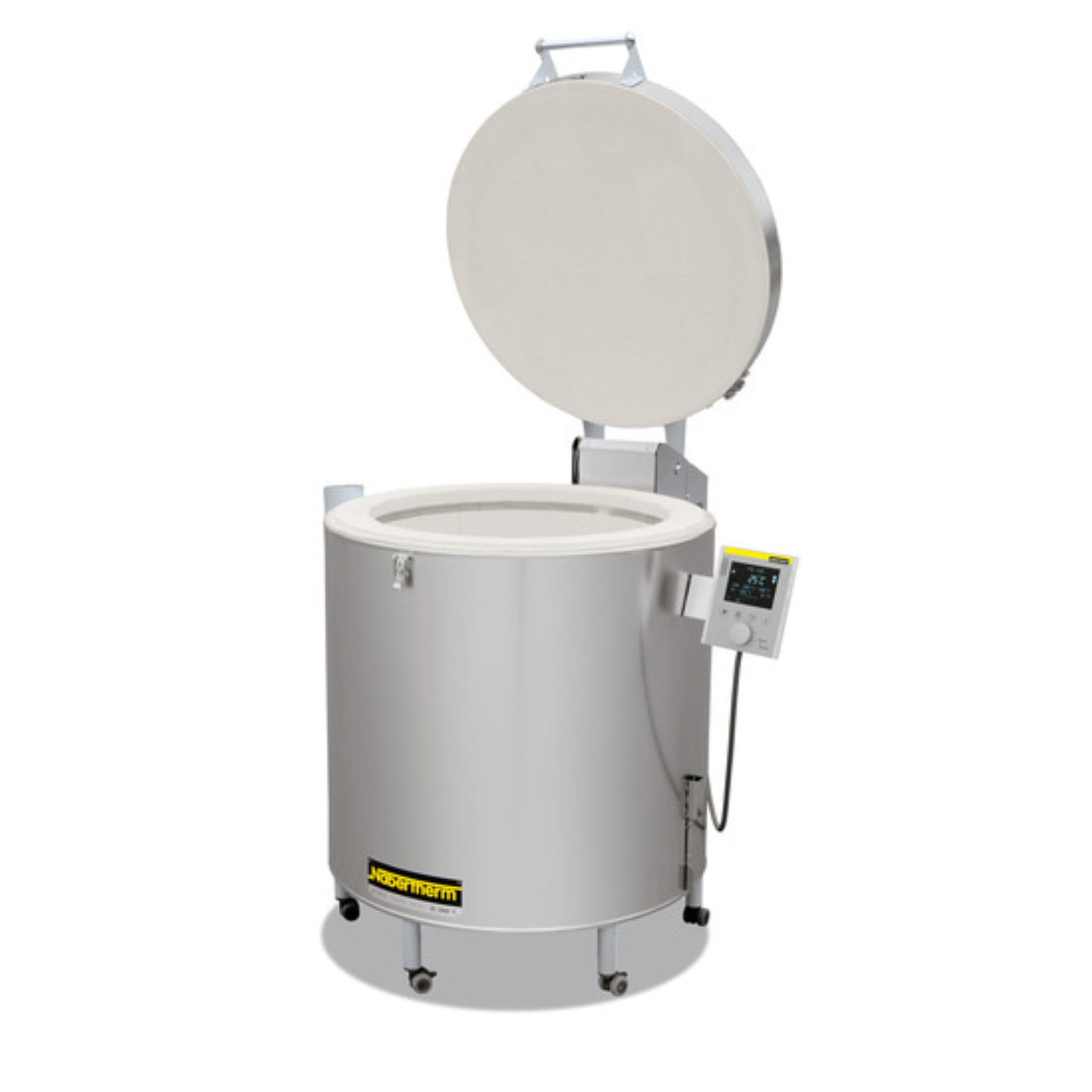

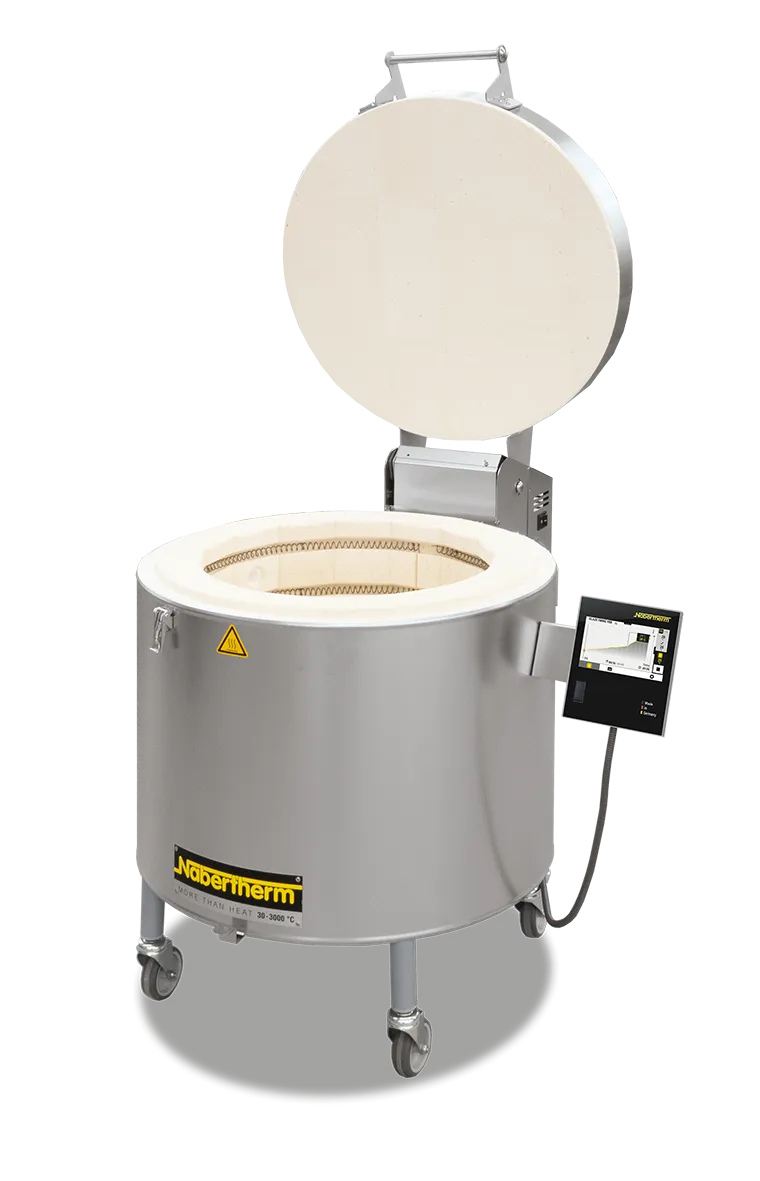

Nabertherm Top 45/L Eco Kiln with C540 Controller

£2,800.00 GBP

Nabertherm Top 45/L Eco Kiln with C540  Controller

Plug & Go Kiln - 13 Amps

Plug &Go Kilns operate off a standard UK domestic 3 pin socket, no special wiring is needed making them easy to site and cheap to run; they are ideal for home use, for hobby and for professional potters producing small items and jewellery.

Features

  1. power supply: 13amp 3pin plug
  2. Capacity: 45 litres
  3. Maximum operating temperature: 1280 (cone 10)
  4. Insulation materials rated to 1320°C
  5. Controller: C540 10 programs, 20 segments
  6. Adjustable air inlet for clean chamber atmosphere
  7. Low noise operation with solid state relays

The attractive design, low weight, and unbeatable price-performance ratio are just a few of the advantages of our top loaders. These models always deliver perfect firing results and are the right choice for hobby potters and workshops.

The particularly energy-saving refractory insulation and energy efficient backing insulation ensure that a maximum temperature of 1320 °C is reached with low electrical connected loads.

These top loaders are ideal for working temperatures between 900 °C and 1230 °C. For intensive professional use, we recommend our rectangular top loaders or chamber kilns with heating from five sides.



Internal Dimentions  410mm Diameter  x 340mm Height

Volume 45 L

Outer Dimentions  600mm W x 890mm D x 730mm H



2.9KW 1 Single Phase



62KG Weight

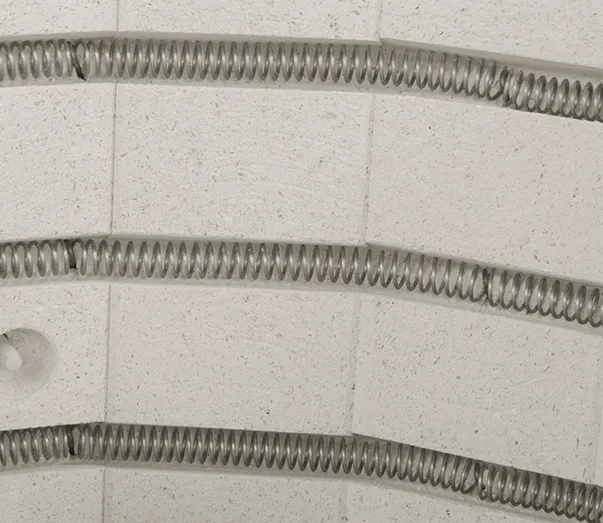

Standard design:Heating elements protected in grooves, heating from all around

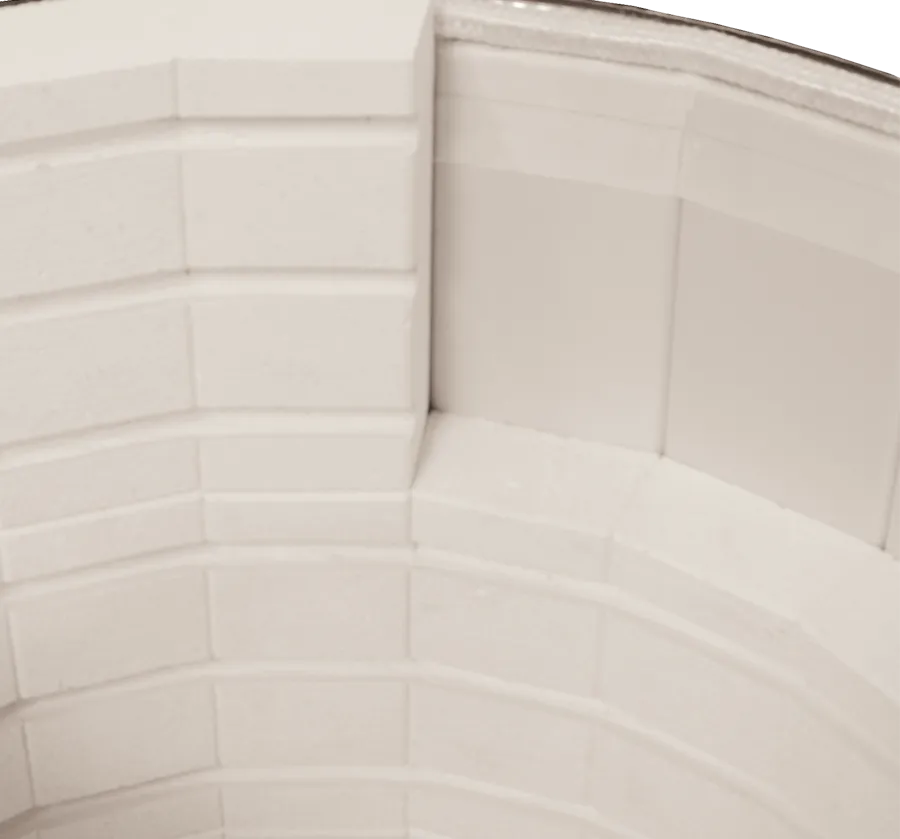

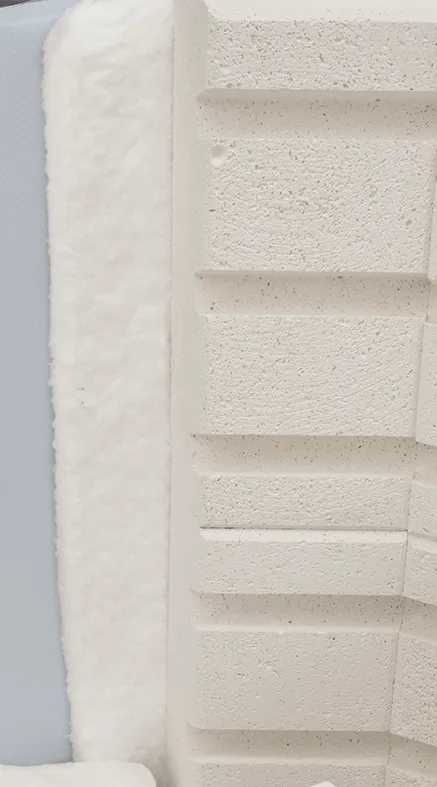

  • Two-layer refractory insulation and energy saving backing insulation
  • Thermocouple protected in the kiln wall
  • Sturdy, locking castors for easy movement of the kiln
  • Defined application within the constraints of the operating instructions
