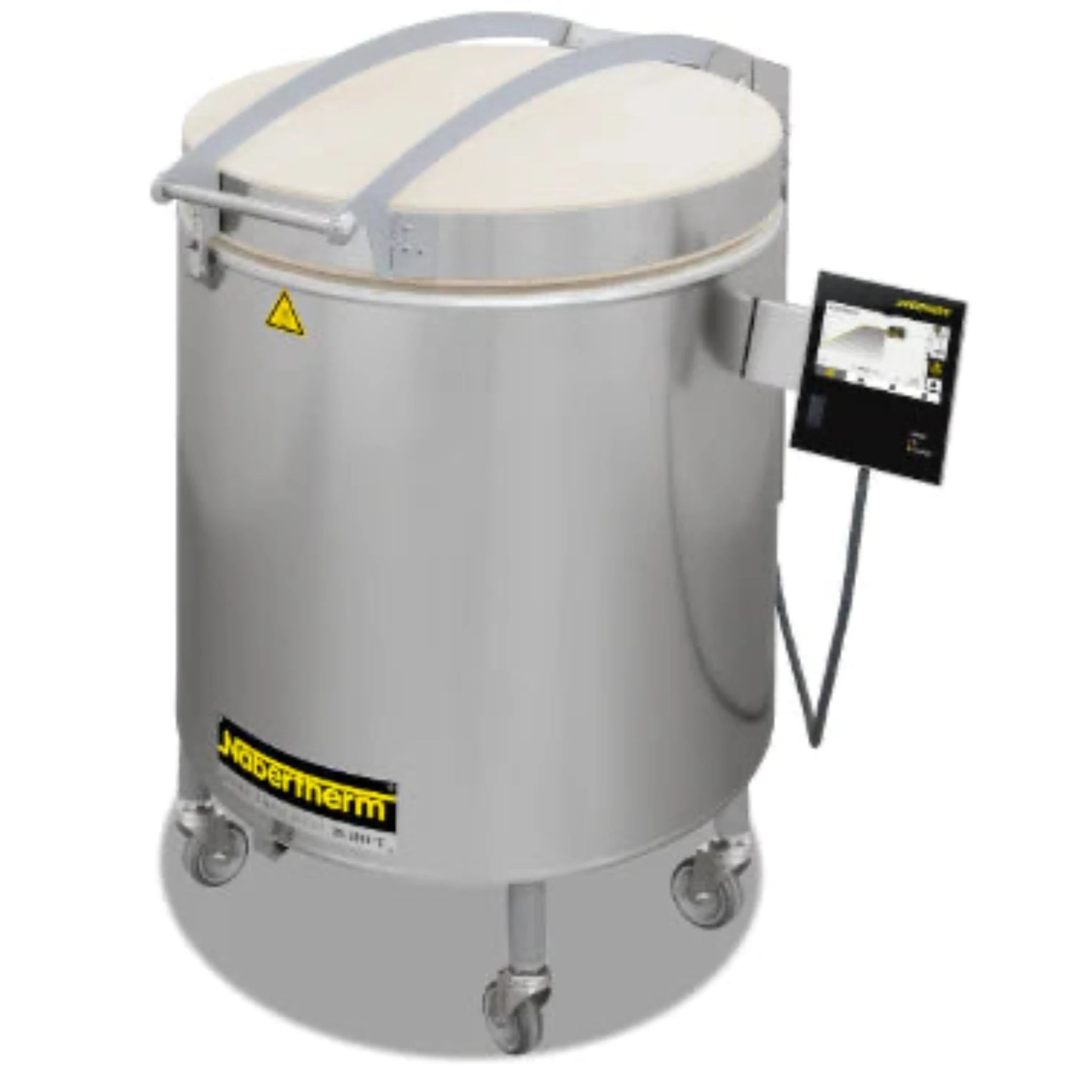

Nabertherm Top 60 Kiln with AC590
The attractive design, low weight, and unbeatable price-performance ratio are just a few of the advantages of our top loaders. These models always deliver perfect firing results and are the right choice for hobby potters and workshops.
The particularly energy-saving refractory insulation and energy efficient backing insulation ensure that a maximum temperature of 1320 °C is reached with low electrical connected loads.
These top loaders are ideal for working temperatures between 900 °C and 1230 °C. For intensive professional use, we recommend our rectangular top loaders or chamber kilns with heating from five sides.
Internal Dimentions 410mm Diameter x 460mm Height
Volume 60 L
Outer Dimentions 600mm W x 890mm D x 850mm H
3.6KW 1 Single Phase
Max temp 1320ºC
72KG Weight
Standard design:
- Heating elements protected in grooves, heating from all around
- Two-layer refractory insulation and energy saving backing insulation
- Thermocouple protected in the kiln wall
- Sturdy, locking castors for easy movement of the kiln
- Defined application within the constraints of the operating instructions
- Maximum operating temperature: 1280 (cone 10)
- Insulation materials rated to 1320°C
- Controller: either B500 5programs, 4 segments or C540 10 programs, 20 segments
- Adjustable air inlet for clean chamber atmosphere
- Low noise operation with solid state relays
The attractive design, low weight, and unbeatable price-performance ratio are just a few of the advantages of our top loaders. These models always deliver perfect firing results and are the right choice for hobby potters and workshops.
The particularly energy-saving refractory insulation and energy efficient backing insulation ensure that a maximum temperature of 1320 °C is reached with low electrical connected loads.
These top loaders are ideal for working temperatures between 900 °C and 1230 °C. For intensive professional use, we recommend our rectangular top loaders or chamber kilns with heating from five sides.
Controller
The AC590 controller, which is included in the price of the kiln, has 50 customisable programs each with 40 segments. So now only one controller for the Nabertherm's 'arts and crafts' kilns. There is also a new feature called 'conny', a cone firing assistant, 'solar mode' for using the kiln with photovoltaic systems and not forgetting Nabertherm's app allowing remote viewing.
For a full list of features, see Nabertherm's AC590 Promotion.
